Best Price - DC-DC power supply 10-32V adjustable boost amplifier power board switch 12-35V 150W car power board Wonderfull
Compare Prices - DC-DC power supply 10-32V adjustable boost amplifier power board switch 12-35V 150W car power board Best Price
Package:
Yes
Model Number:
150W
Brand Name:
kaolanhon
Maximum Power Per Channel:
131-200W
type:
Boost Power Board
power:
150W
output current:
6A(MAX)
input current:
10A(MAX)
input voltage:
12V
Type:
Car Amplifier
Product information
Disclaimer: This module output power is limited to the module itself with a carrying capacity is also affected by many factors before and after the class level power load, etc; the following data for professional equipment measured results, without considering other factors. Power module is a kind of electronic components, please no electronic expertise who buy carefully.

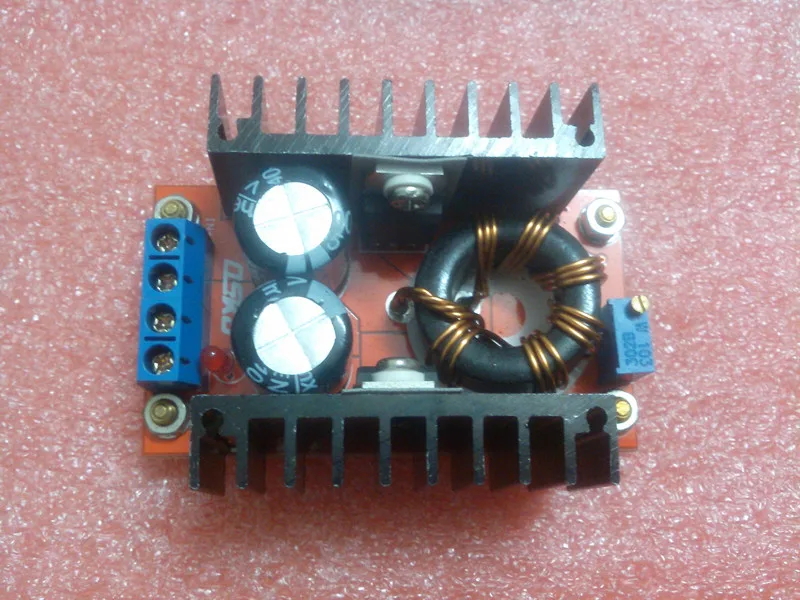

Module parameters:
Module Properties: non-isolated step-up module
Module Size: Length 65MM * High 23MM * (width 56.5MM including fins)
Input: IN + input positive level, IN- input negative
Output way: OUT + output positive level, OUT- output negative
Connection: solderless terminal
Input voltage: 10-32V
Output voltage: (1) continuously adjustable (12-35V) Our default shipping voltage 19V
(2) fixed output (arbitrary choice between 12-35V)
Output Current: 6A (MAX)
Input Current: 10A (MAX) (more than 10A, please enhance heat dissipation,)
Output power: natural cooling 100W (MAX), plus the fan 150W (MAX)
Easy to drive 65W 90W including dual-core laptop
Laptop module temperature with 12V battery with ordinary 19V 3.42A about 45 degrees
Conversion efficiency: 94% (input 16V output 19V 2.5A when measured) (for reference only)
Operating temperature: Industrial grade (-40 to + 85 ) (ambient temperature exceeds 40 degrees, lower power use, or plus fan)
Full load temperature rise: 45
No-load current: Typical 25mA
Short circuit protection: None (Please enter install overcurrent protection device)
Input reverse polarity protection: none, in the input diode in series
Applications:
1) DIY an output adjustable vehicle power supply, only need to enter access your 12V power supply, the output voltage you can (14-35V) on freedom continuously adjustable, but the output voltage can not be lower than the input voltage, oh.
2) Universal car laptop power supply. Enter your 12V connected to the power supply, the output voltage is adjusted to your notebook to work.
3) boost charger, you can use the 12V power supply is higher than 12V battery charging, for example, 24V battery.
4) power supply for your electronic equipment, as long as the voltage is adjusted to the voltage and current you need not exceed the rated current can all be working properly.
5) before the system-level power supply, when you do a project when the input is 10-18V time, and your system board and power needs of about 24V with its great power, with ordinary DC-DC power module is too small , then you choose this module we will be your best choice, no debugging directly on the machine can work easily achieve efficient high-power boost.
