Best Offers 1200W high power DC-DC boost constant voltage constant current adjustable car charging power amplifier board (H6A2)

Product ID : 32804970868

Price : $17.78

Discount Price : $26.02

VISIT WEBSITE NOW

Item specifics

•
  Package:
  Yes



•
  Maximum Power Per Channel:
  Above 200W



•
  Brand Name:
  kaolanhon



•
  Model Number:
  H6A2



•
  Channels:
  1



•
  Type:
  Professional Amplifier


Product Description

Module parameters:



   Module Model: SZ-BT07CCCV-A



   Module name: 1200W boost constant current module



   Module nature: non-isolated step-up module (BOOST)



   Input voltage: DC10-60V (direct input 10-60V without jumper

cap selection voltage)



   Input current: 20A (MAX) more than 15A Please add fan cooling

(plus fan cooling input voltage at 12-24V when the input current

can reach 25A)



  Static operating current: 15mA (12V liters 20V, the higher the

output voltage will be increased too much static too)



  Output voltage: 12-80V continuously adjustable.



 Output current: 18A MAX more than 10A please strengthen the heat

(with the input and output pressure, the greater the

difference in output current smaller)



 Constant current range: 0.5-18A (+/- 0.3A)



 Input anti-reverse: Yes (150A power MOS anti-anti)



 Low battery protection: Yes (9-50V adjustable)



 Operating temperature: -40 ~ +85 degrees (when the ambient

temperature is too high, please strengthen the heat)



 Operating frequency: 150KHz



 Conversion efficiency: 92% -97% (efficiency and input, output voltage,

current, pressure related to the pressure difference of small efficiency)



 Input overcurrent protection: Yes (input more than 25A, automatic

protection, power supply does not boost)



  Short circuit protection: Yes (input 30A fuse) Dual short circuit protection, use more secure.



  Input reverse protection: a (150A power MOS tube anti-anti-can be a long time reverse)



   Installation: 4 3mm copper pillars



   Wiring method: Terminals (please use high current copper wire)



   Module size: length 130mm wide 52mm high 53mm









  Output power: = input voltage * 20A, such as: input 12V * 20A = 240W

input 12V when the high power of 240W



                    Input voltage * 20A such as: input 24V * 20A = 480W, that is:

input 24V when the power of 480W



Note: input 12V when the high power is 240W, input 24V high power

480W, input 36V high power 720W





When using the boost power supply, note the following:



1 input power supply voltage must be 10V or more.



2 with the switching power supply to do the input power, the first case

of no load on the input power and adjust the voltage. And then to load.

(Must ensure that the switching power supply has been working), or

the first load to adjust the voltage, and then disconnect the switching

power supply and then load. Turn on the switching power supply

and power supply module when the switching power is on. (Since

the switching power supply has a climb time when it is turned on,

the chip is not working when the voltage is below 10 V. It is easy

to break the MOS tube.



3 When used in constant current mode constant voltage must ensure

that the constant voltage must be higher than the input voltage. (Such

as the power supply input voltage is 12V no-load output voltage is

15V then go to a 3.2V LED lights. This situation is not allowed. Less

4 series after the LED lights)







Applications:



1, DIY a power supply, the input can be 12V, the output can be 12-80V adjustable.



2, for your electronic equipment power supply, you can set the output value

according to your system voltage.



3, as a car power supply for your laptop, PDA or a variety of digital products.



4, DIY a high power notebook mobile power: coupled with a large capacity

of 12V lithium battery pack, so that your books where you can light up where



5, solar panel regulator.



6, to the battery, lithium battery and other charges.





7, drive high power LED lights.

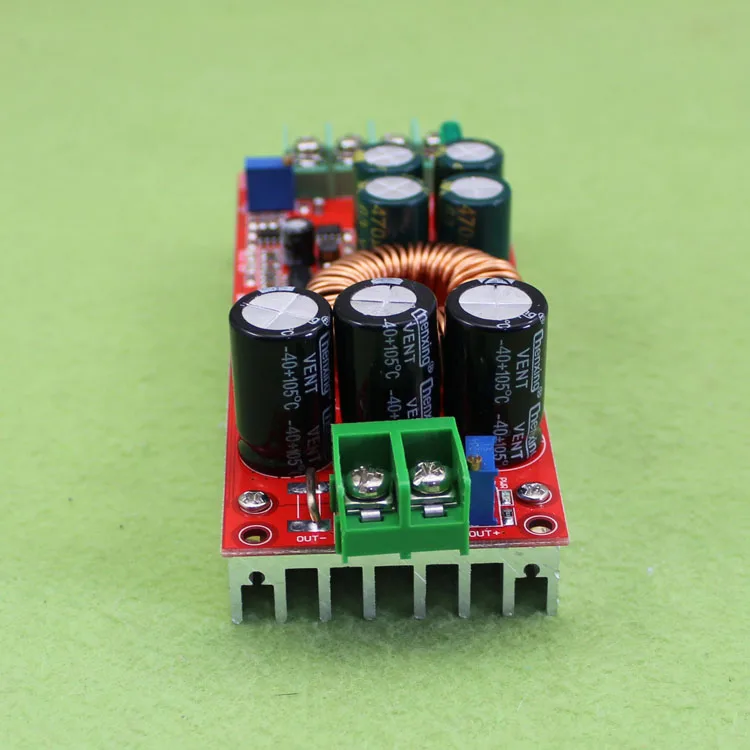

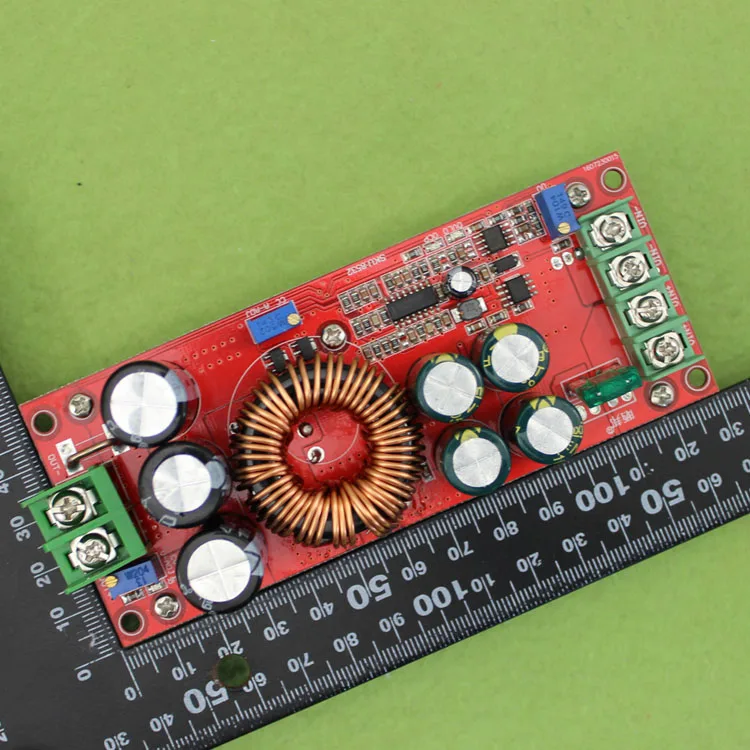

PHOTO  LIST:





























































 Aftermarket commitments:
1, Our commitment to the sale of goods 100% integrity assurance,

if you have any question for the products, please contact us directly,
our basically 24-hour online customer service will patiently answer you!
2, If you are not satisfied with our products, you can request a refund

or exchange.
We will actively coordinate and process your request. If the product does

 not work, we will full refund.
But require the buyer to return the product by advanced freight, we will

refund the freight you pay after getting and confirming the product status.
On the sign:
Please carry out inspection before you sign to check the number

 of parts shortages or discrepancies, etc.;
If so, please contact us at the contact details on the express orders.



































































































































































































































































































































































































































Packaging Details

•
  Unit Type:
  piece



•
  Package Weight:
  0.4kg (0.88lb.)



•
  Package Size:
  1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in)
