Product ID : 32907084251

Price : $6.34 - 14.59

Discount Price : $28.69

VISIT WEBSITE NOW

Item specifics

•
  Maximum Power Per Channel:
  4W



•
  Brand Name:
  TONLEN



•
  Channels:
  2 (2.0)



•
  Model Number:
  PAM8403



•
  Package:
  No



•
  Power Supply:
  DC 3.6V-5.5V



•
  Output power:
  3W + 3W (4 ohms)



•
  Signal to noise ratio:
  90dB



•
  Efficiency:
  >90%



•
  Size:
  24*15.5*mm



•
  Positioning hole size:
  pitch 20mm,hole 2mm


Product Description

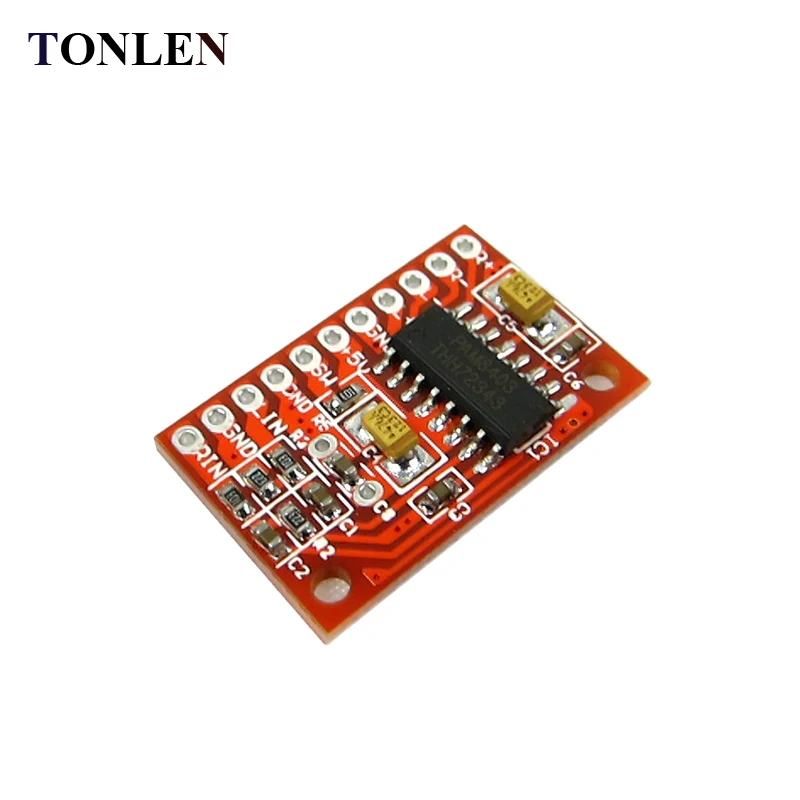

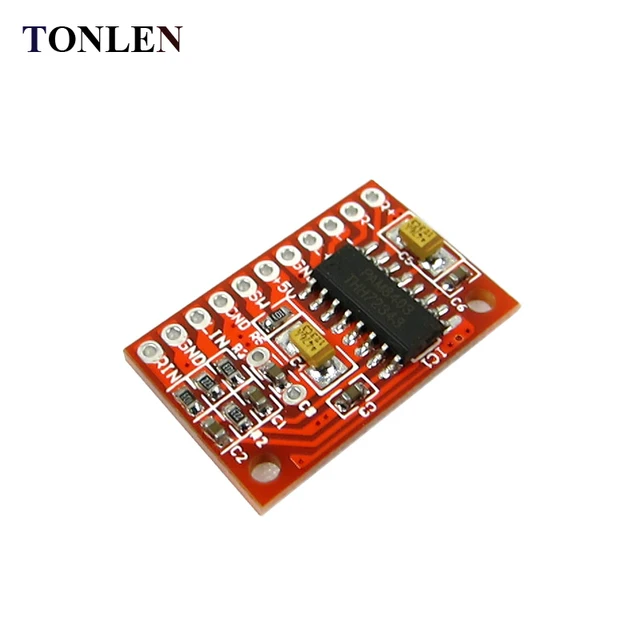

TONLEN 10pcs PAM8403 Mini Digital Amplifier Board 3W*2 High Power DIY Car Exter Speaker Class D Audio Digital Amplifier Module

Introduction to use:

The PAM8403 is a Class D digital amplifier with high efficiency.

Ultra-mini digital power amplifier board,

New high-efficiency digital amplifiers,

Power supply voltage: 3.6 to 5.5V. It can be powered by USB 5V or with lithium battery, or with four 1.2V batteries. Powered by a transformer. Be sure to add 5V regulator circuit, more than 6V chip will burn out! It is recommended to take USB 5V or use a single-cell lithium battery. At 5V, the output is 3W x 2.

The ultra-thin board can be easily placed in the gap of small plastic boxes or other equipment, such as making MP3/4 or notebook external speakers. It is the best substitute for upgrading TDA2822 and TEA2025!



Application:

LCD TV/monitor, megaphone, laptop, portable speaker, card speaker, portable DVD player, game console, mobile phone/hands-free phone, etc.

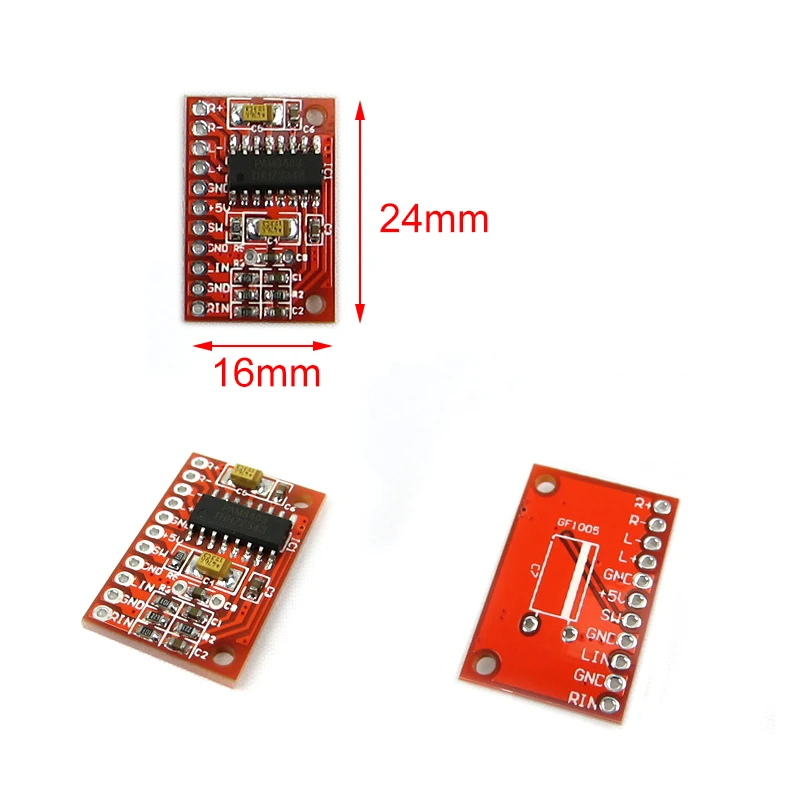

Board size: 15.5*24mm.

Very suitable for electronic enthusiasts DIY learning.



advantage:

The internal special output processing circuit eliminates the traditional LC network and has a lower EMI value than LC! Maximum power output at lower voltage, super power saving, built-in standby electronic switch, built-in high gain buffer amplifier, built-in short circuit protection.



parameter:

Power supply: DC 3.6V-5.5V

Output power: 3W + 3W (4 ohms)

Signal to noise ratio: 90dB

Efficiency: >90%

Size: 24*16mm

Positioning hole size: 20mm pitch, hole diameter: 2mm



note:

1: The positive and negative poles of the power supply cannot be connected in reverse. The power supply voltage should not exceed 5.5V, otherwise the IC will be damaged.

2: There is a high gain buffer on the chip. It is not possible to change any component parameters on the board. Non-conforming parameters will cause IC damage.

3: Please use the shielded wire as much as possible for the input line, which can play an anti-interference effect and eliminate the clutter current.

4: The output is the BTL driving mode of the cmos tube. The negative poles of the left and right speakers cannot be connected together, that is, the 4 lines connecting the speakers are completely independent, and are not allowed to be connected together!
